Precision Manufacturing Ways for Stainless Steel Parts 2024

Precision manufacturing has become crucial as industries demand high-quality and precise components. For stainless steel parts, precision manufacturing guarantees high-quality results that meet the stringent standards of various sectors. Today, manufacturers have access to advanced technologies that allow for the fabrication of complex and intricate designs with minimal error margins. This article explores today's primary methods for manufacturing stainless steel parts, specifically CNC machining and sheet metal fabrication.

What Is Precision Manufacturing?

Precision manufacturing is a process that focuses on producing parts and components with extremely tight tolerances and exact specifications. This method utilizes advanced machinery such as CNC machines, laser cutters and 3D printers to achieve high levels of precision and repeatability. These machines execute complex designs with high accuracy, often within microns.

Critical Aspects of Precision Manufacturing

Below are the main characteristics of precision manufacturing

Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM)

These technologies play a vital role in precision manufacturing. Machinists utilize CAD software to generate intricate digital models of parts, while CAM software translates these designs into instructions for manufacturing machines. This integration ensures that the final products adhere closely to the original designs.

Tight Tolerances

Tolerances define the allowable variation limit in a physical dimension. Precision manufacturing techniques such as CNC machining can achieve tolerances as tight as ±0.001 inches (±25.4 microns). This level of accuracy is essential for parts that must fit together perfectly and function reliably under stress.

Quality Control

Rigorous inspection and testing protocols are employed at various production stages to detect and rectify deviations from the design specifications. This often involves using advanced measurement tools like coordinate measuring machines (CMM) and laser scanners.

Material Selection

The choice of material remains pivotal in precision manufacturing. Stainless steel, for example, is favored for its strength, corrosion resistance, and durability. The material's properties must be compatible with the intended use of the part and the manufacturing process itself.

How to Manufacture Stainless Steel Parts

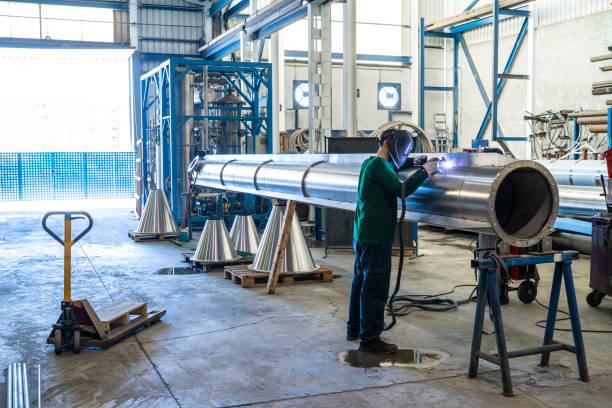

a welder welding a big stainless steel pipe

Manufacturing stainless steel parts involves several precision techniques, each offering unique advantages. CNC machining and sheet metal fabrication are the two most prominent methods for fabricating these parts.

Check the details of each method below:

CNC Machining

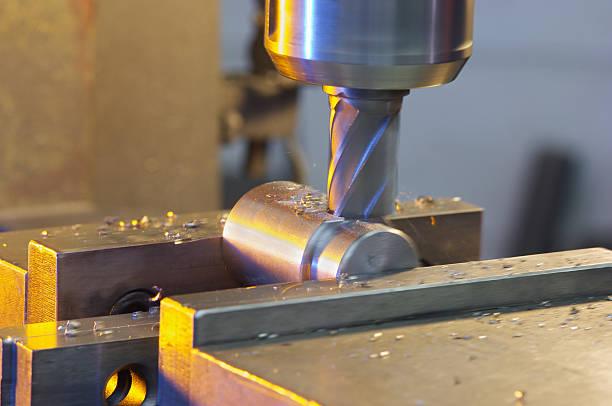

CNC milling machine removing material from a metal block

CNC (Computer Numerical Control) machining is a versatile and precise manufacturing process where pre-programmed computer software dictates the movement of machinery and tools. This technology can produce complex and intricate parts with high precision, making it ideal for stainless steel components.

CNC machining involves several operations, including milling, turning, drilling, and grinding. These operations can shape stainless steel into various forms, from simple geometries to highly complex structures. The process starts with a CAD model converted into CAM instructions. These instructions guide the CNC machine in removing material from a stainless steel workpiece and creating the desired part.

Pros of CNC Machining

Here are the advantages of manufacturing stainless steel parts with CNC machining:

High Precision

CNC machines can achieve extremely tight tolerances, often within microns, ensuring parts fit perfectly in their applications. This level of precision is vital for stainless steel components used in critical applications, where even a minor deviation can result in production failure.

Versatility

CNC machining can handle various stainless steel grades and shapes, from simple bolts to complex aerospace components. It supports various operations like milling, turning, and drilling, making it suitable for diverse manufacturing needs.

Efficiency

Automated operations reduce manual intervention, speeding up production and reducing the likelihood of errors. Once operators set up the machine, it can run continuously, producing large quantities of stainless steel parts with slight supervision.

Superior Surface Finish

Stainless steel is well-established for its resistance to corrosive elements, and a smooth surface finish from CNC machining adds to this benefit. A smoother surface reduces crevices and irregularities where corrosive agents can accumulate. This, in turn, provides better protection against environmental factors.

Cons of CNC Machining

Check the downsides of CNC machining below:

Complexity

Operating and programming CNC machines requires specialized knowledge and training. Skilled operators and programmers are essential to ensure the machines run efficiently and produce high-quality parts, which in turn increases operational costs.

Material Waste

The subtractive nature of CNC machining can result in higher material waste compared to additive manufacturing methods. During machining, a significant amount of stainless steel is removed and becomes scrap, which can be costly and less sustainable.

High Initial Cost

Setting up CNC machines and software requires a significant investment. The cost includes purchasing the machine, installing the software, and training personnel. As a result, this initial expense becomes prohibitive for small businesses or startups.

Sheet Metal Fabrication

a sheet metal fabricator at work

Sheet metal fabrication involves cutting, bending, and assembling flat stainless steel sheets into functional parts and structures. Most manufacturers use this method to produce enclosures, brackets, panels, and other components that require strength and formability.

The process begins with cutting the stainless steel sheets into desired shapes using laser cutters, plasma cutters, or shears. Afterwards, machinists bend the cut pieces using press brakes or roll-forming machines to achieve the required angles and curves. Finally, the parts are assembled using welding, riveting, or bolting.

Pros of Sheet Metal Fabrication

Below are the benefits of manufacturing stainless steel parts with sheet metal fabrication:

Cost-Effective

Sheet metal fabrication is usually more cost-effective than CNC machining for medium to large production runs. This is due to lower material waste. The process uses less material compared to CNC machining, thus reducing overall costs.

Flexibility

Sheet metal fabrication can fabricate various shapes and sizes from suitable stainless steel grades. These components can range from small brackets to moderately sized enclosures. As such, the flexibility of this manufacturing technique makes it ideal for various applications across different industries.

Strength

Stainless steel retains its strength and durability throughout fabrication, making it suitable for structural applications. The resulting parts are robust and can withstand significant stress and environmental conditions.

Cons of Sheet Metal Fabrication

Check the limitations of sheet metal fabrication below:

Surface Finish

Stainless steel components manufactured with sheet metal fabrication may need additional finishing processes to achieve a smooth or polished surface. Raw fabricated parts may have rough edges or marks that require polishing or other surface treatments to meet quality standards, which adds to the production cost and time.

Limited Complexity

Sheet metal fabrication is less suitable for parts requiring intricate details or tight tolerances. In other words, the technique is better suited for simpler shapes and designs, limiting its application to highly complex components.

Thickness Constraints

The process is typically limited to specific thicknesses of stainless steel, affecting its application for thicker parts. Sheet metal fabricators often find it challenging to cut and bend very thick sheets accurately. Therefore, this restricts the range of products that can be fabricated.

Here’s a table comparing CNC machining and sheet metal fabrication for manufacturing stainless steel parts:

Conclusion

Precision manufacturing techniques like CNC machining and sheet metal fabrication offer the accuracy and efficiency needed for producing high-quality stainless steel parts for modern applications. CNC machining excels in creating complex, intricate designs with high precision, while sheet metal fabrication provides flexibility and strength for various structural applications. Understanding each method's features, benefits, and limitations helps you choose the best approach for your manufacturing projects.

At Zintilon, we specialize in sheet metal fabrication and CNC machining, providing customized solutions to meet your needs. Contact us today to discuss your project specifications and explore how we can help you achieve optimal results.
