Monitor: 2megapixel Autofocus Usb2.0 Single-board Camera with Housing.usb Camera Module

Posted by Jiang Su
1
Jan 22, 2016
318 Views

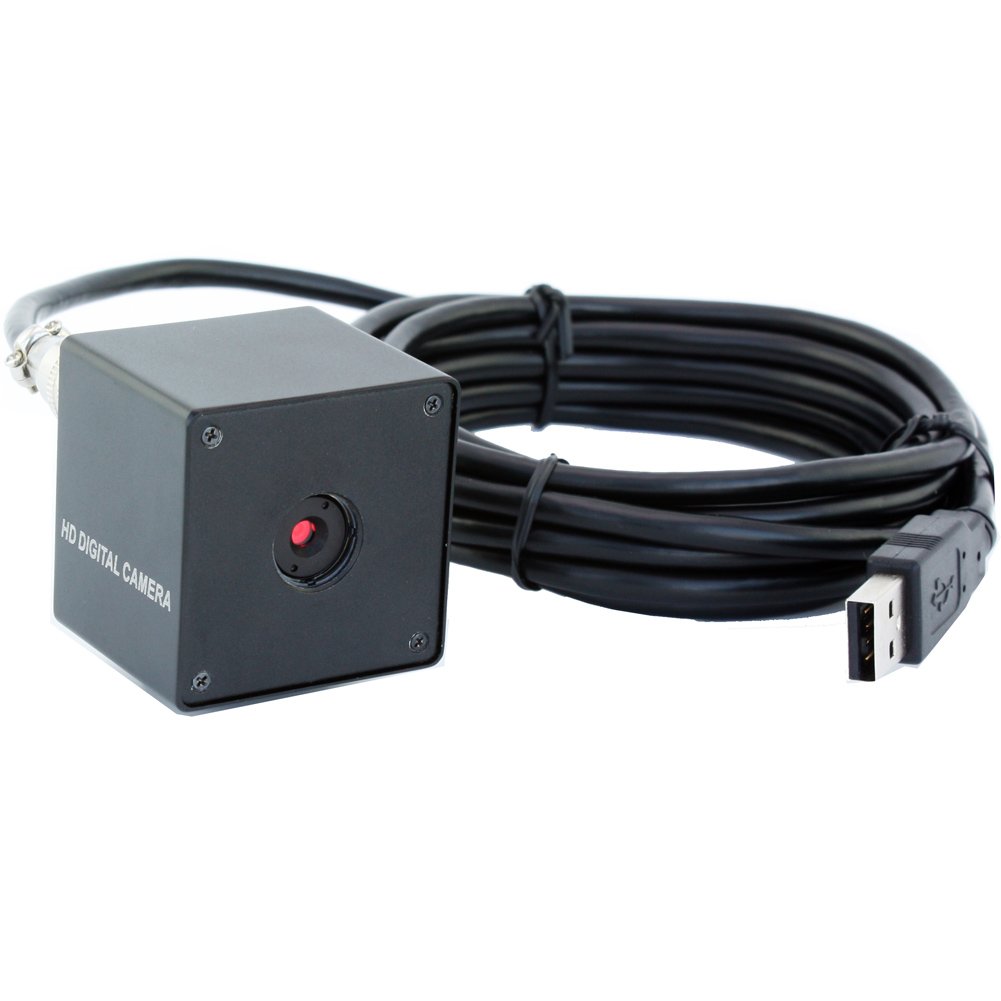

The ELP-USBFHD03AF-BA100 USB Camera module is a fully featured compact single-board camera with housing perfectly targeted for space and cost sensitive OEM applications. A superior image quality in combination with a very high frame rate make the camera ideally suited for embedded applications.

  • Compact industrial camera series with USB 2.0
  • High quality black housing and color CMOS sensors
  • Autofocus lens up to diagonal 100 degree
  • 2megapixel 1920X1080P HD resolution
  • compact industrial camera solution for any PC with USB ports

Specification:
Autofocus 2MP USB Camera,Sensor 1/2.7" CMOS OV2710
Resolution 1920X1080
Picture format MJPEG or YUY2 optional/USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance:
1920 (H) x 1080 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 1024 (V) pixels MJPEG 30fps YUY2 6fps
1280 (H) x 720 (V) pixels MJPEG 60fps YUY2 9fps
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
voltage DC 5V/current 150mA/work temperature DEGREES(-20~70)
Support OS “WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above”

What’s special about ELP USB2.0 industrial camera?
1)Small, Versatile, cost effective: ELP USB 2.0 cameras come in compact, competitively priced packages in housed
2)Rich features. On-camera power, AEC AEB support.

More Information:  http://www.amazon.com/gp/product/B00UV89ASO/
