Etekcity Digital LCD Voltmeter Ammeter Multimeter Tester Meter
- Max AC Voltage Range: 600V; Resistance Measurement: 200 Ohm-2000K Ohm range
- LCD Max Display: 1999 Low Battery Indication: - /+ display
- Overload protection on all ranges. Sampling 2/3 times readings per second.
Product Description
Size: Multimeter

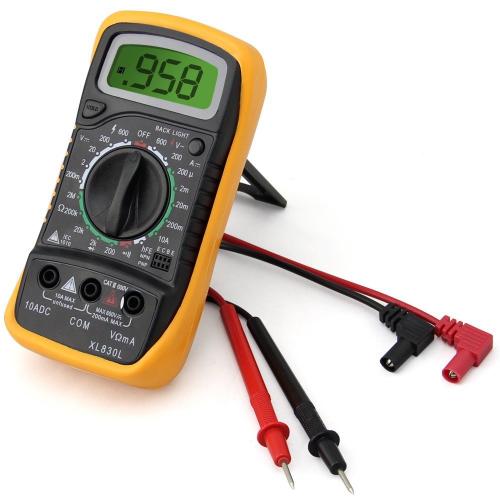

The Etekcity® Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings are indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students.
Features:
DC Voltage: 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%
AC Voltage: 200V/600V +- 1.2%
DC Current: 200A/2mA/20mA +- 1%, 200mA +- 1.5%, 10A +- 3%
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ +- 0.8%
Display: LCD, 1999 counts
Fuse Protection: F-200mA/250V
Operating Temperature: -0C to 40C
Over Range Indication: Only figure "1" on the display
Polarity Indication: "-" displayed for negative polarity
Low Battery Indication: - /+ display
Battery: 9V
Dimension: 138mm x 69mm x 31mm
Weight: 160g
Package Includes:
1 x Etekcity® Digital Multimeter
1 x Instruction Manual (English)
1 x set of test leads
1 x 9V Battery
Features:
DC Voltage: 200mV/2V/20V/200V +- 0.5%, 600V +- 0.8%
AC Voltage: 200V/600V +- 1.2%
DC Current: 200A/2mA/20mA +- 1%, 200mA +- 1.5%, 10A +- 3%
Resistance: 200Ω/2KΩ/20KΩ/200KΩ/2MΩ +- 0.8%
Display: LCD, 1999 counts
Fuse Protection: F-200mA/250V
Operating Temperature: -0C to 40C
Over Range Indication: Only figure "1" on the display
Polarity Indication: "-" displayed for negative polarity
Low Battery Indication: - /+ display
Battery: 9V
Dimension: 138mm x 69mm x 31mm
Weight: 160g
Package Includes:
1 x Etekcity® Digital Multimeter
1 x Instruction Manual (English)
1 x set of test leads
1 x 9V Battery
More Information: http://www.amazon.com/dp/B00B7CS3UY
